Marine-grade concrete seawall repair, structural helical tie-back anchoring, shoreline erosion control, and heavy riprap armoring in Hot Springs, AR.

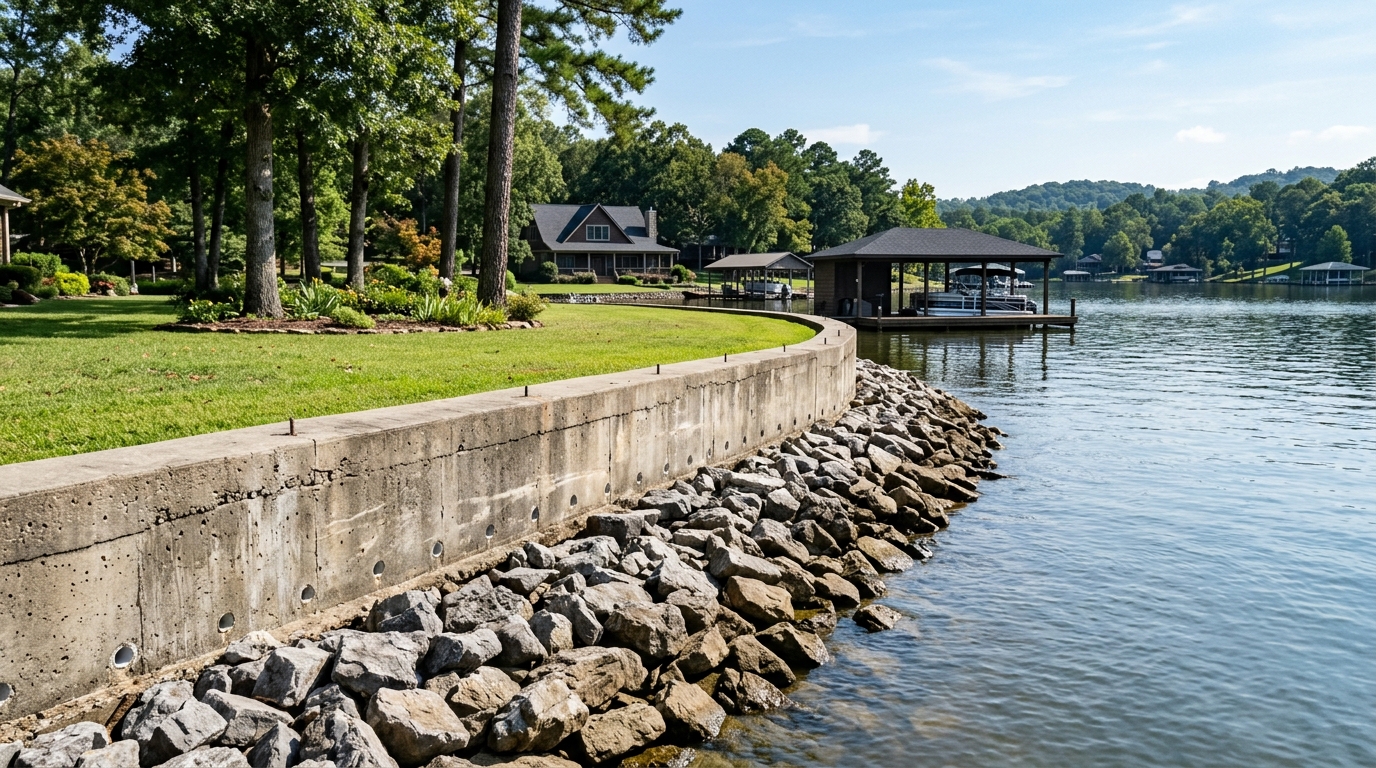

Lake Hamilton's seasonal water drawdown (typically November through March) exposes failing seawall foundations to severe hydrostatic pressure, freeze-thaw cycles, and boat wake erosion. We engineer heavy reinforced retaining structures built to endure extreme lakefront forces.
| Engineering Parameter | A & P Concrete Construction Standard |
|---|---|
| 4,500 PSI Marine Concrete Mix | Low-permeability marine concrete with water-reducing admixtures and air-entrainment designed to resist continuous wave action, chemical immersion, and freeze-thaw cycles. |
| Deep Bedrock Keyway Footings | Foundations are anchored deep into natural shale/rock shorelines or reinforced concrete footer pads below the lake bed frost line to prevent scouring. |
| Helical Soil Tie-Back Anchors | Heavy-duty hot-dipped galvanized steel helical anchors driven deep into solid inland soil, mechanically stabilizing leaning walls against outward hydrostatic pressure. |
| Hydrostatic Pressure Relief Weep Holes | 3-inch perforated PVC weep vents with non-woven geotextile filter fabric installed every 6 to 8 feet to relieve trapped groundwater behind the wall. |
| Heavy Riprap Stone Armor Toe | Placement of multi-ton Class 2 and Class 3 Arkansas granite/limestone riprap rock along the wall base to dissipate boat wakes and eliminate toe scouring. |
| Heavy Rebar Cage Reinforcement | Continuous dual mat #4 and #5 Grade 60 epoxy-coated rebar cages tied throughout the entire stem wall and footing. |
Every project follows our rigorous engineering workflow to ensure zero settlement, optimal curing, and lifelong durability.
We inspect the exposed lakebed, assess structural wall lean, measure toe erosion, and check for hydrostatic cracking during Entergy lake drawdowns.
Excavators dig down into stable lakebed material. We drill and epoxy steel dowels into bedrock to key the footer firmly into the lake floor.
Hydraulic torque drives rotate helical steel anchors 15 to 30 feet inland into undisturbed soil, locked to the wall with heavy steel bearing plates.
Heavy marine forms are erected. Dual grids of #4 and #5 steel rebar are tied with mechanical splices to resist boat wake impact.
High-density 4,500 PSI marine concrete is placed and consolidated with heavy internal vibrators to eliminate air voids and guarantee maximum density.
Washed drainage gravel and filter fabric are placed behind the wall. Heavy riprap stone is armored along the base to deflect wave energy.
Transparent pricing based on actual Hot Springs area project metrics. We provide 100% free on-site measurements and firm written quotes.
| Project Scope | Typical Price Range | Inclusions & Specifications |
|---|---|---|
| Seawall Stabilization (Tie-Backs & Weep Holes) | $125 – $220 / linear ft | Structural helical tie-backs, crack injection, weep hole venting, and cap restoration. |
| New Reinforced Concrete Seawall Construction | $240 – $380 / linear ft | Turnkey new build: deep bedrock footer, #5 rebar cage, 4500 PSI marine pour, and backfill. |
| Riprap Shoreline Wave Dissipation Armor | $65 – $110 / linear ft | Heavy excavator placement of Class 2/3 stone over commercial geotextile fabric. |
Detailed answers to common questions about concrete engineering, permitting, pricing, and installation in Hot Springs and Central Arkansas.
Yes! If the concrete structure is intact, we can install heavy-duty galvanized helical tie-back anchors driven deep inland, drill hydrostatic weep holes to release trapped ground water, and stabilize the wall permanently at a fraction of replacement cost.
The ideal window is during Entergy's annual winter lake drawdown (typically early November through early March). With the lake level lowered 3 to 5 feet, our heavy excavators can access the exposed shoreline, inspect bedrock footers, and pour dry, high-density concrete.
Costs typically range from $125 to $350 per linear foot depending on whether the project is structural stabilization (tie-backs and weep relief) or a complete new 4,500 PSI marine concrete rebuild. We provide free lakefront inspections: (501) 762-3999.
The #1 cause of seawall failure is hydrostatic water pressure. When groundwater builds up behind the wall after heavy rain and has no weep holes to escape, it exerts massive outward pressure. Boat wakes then scour the base (toe erosion), causing the wall to lean forward and crack.
Yes. We coordinate directly with Entergy Arkansas Shoreline Management and local environmental agencies to ensure all seawall repairs, riprap placement, and lakebed work comply with property boundary regulations.
A properly engineered 4,500 PSI reinforced concrete seawall anchored into bedrock and protected with drainage weep holes and riprap stone will protect your shoreline for 40 to 50+ years.
Serving Hot Springs, Hot Springs Village, Bismarck, Benton, Malvern & Central Arkansas for over 27 years.
Submit your project details below or call our master estimator at (501) 762-3999.
